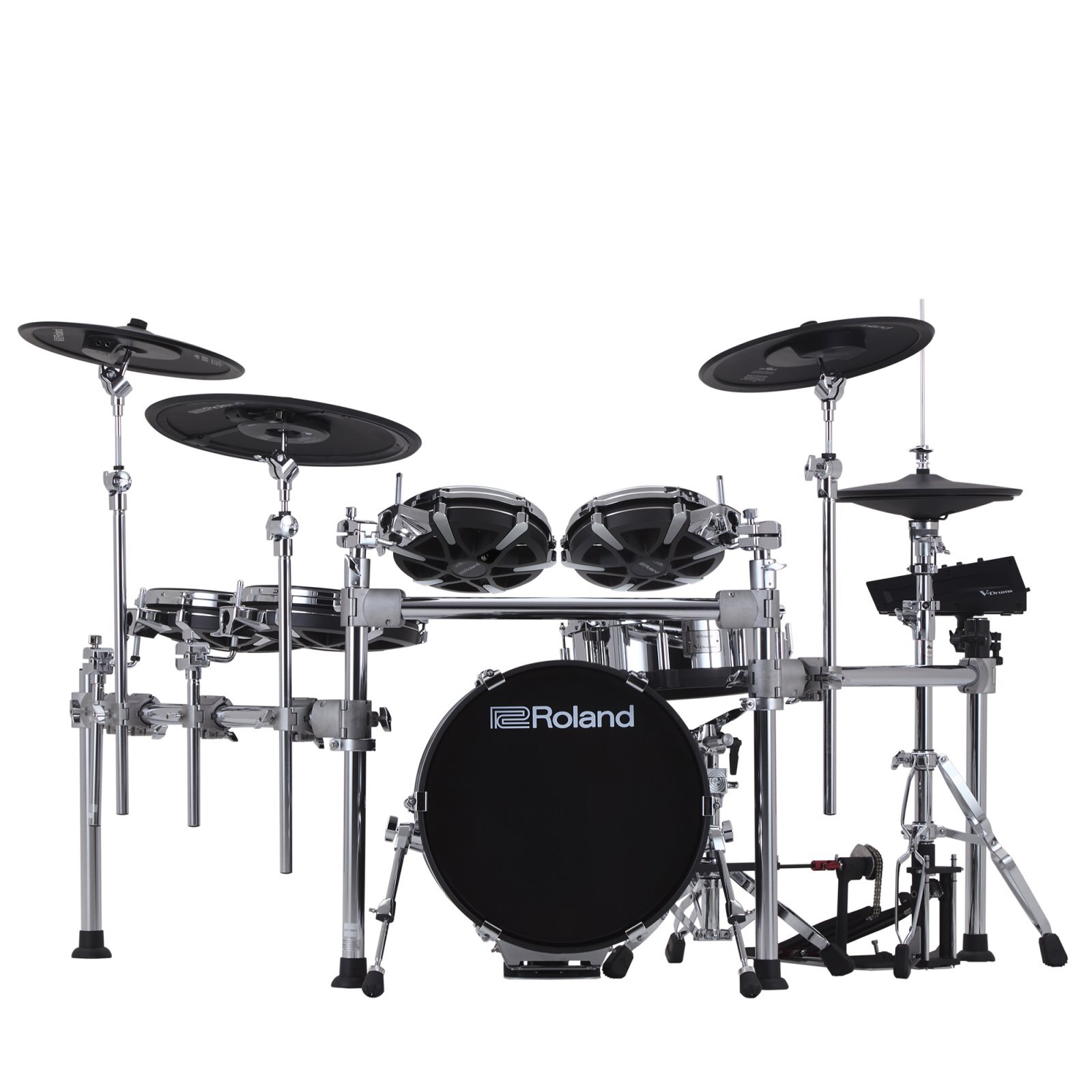

Roland 7 Series TD716 V-Drums Kit

-Kit configuration
Drum sound module: V71 x 1
Snare: PD-14DSX x 1
Tom1, Tom2: PD-10X x 2
Tom3, Tom4: PD-12X x 2
Hi-hat: VH-14D x 1
Crash1, Crash2: CY-16R-T x 2
Ride: CY-18DR x 1
Kick: KD-18-BK x 1
Drum stand: MDS-Stage 2 x 1

-Extra trigger input jack
4 (AUX 1--AUX 4)

-Dimensions (The required space volume)
1,650 (W) x 1,500 (D) x 1,250 (H) mm
65 (W) x 59-1/16 (D) x 49-1/4 (H) inches
(including Kick pad, Cymbals, Hi-hat stand and Drum throne)

-Weight (Total weight of kit components and accessories)
56.3 kg
124 lbs 2 oz

-Accessories
Setup guide
MDH-STG2
Connection cable (Tom4)
Drum key

-Options (sold separately)
Cymbal mount: MDY series
Pad mount: MDH series
Personal drum monitor: PM series
V-Drums accessory package: DAP-3X
V-Drums mat: TDM-20
Noise eater: NE series

* Kick pedal, snare stand, hi-hat stand, and drum throne are not included.

Module:

-Drum Kits
200 (Preset: More than 70)

-Instruments
More than 1000

-Effect Types
Layer Transient: each layer
Layer Equalizer: each layer
Pad Equalizer: each pad (by head and rim)
Pad Compressor: each pad (head and rim common)
Overhead Mic Simulator
Room/Reverb/Kit Resonance
Bass Effect: 4 systems (two can be used simultaneously per system/with side chain function), 94 types
Bus Reverb
Master Compressor
Master Equalizer

-User Sample Import
Number of User Sample: Maximum 500 (includes factory preloaded user samples)
Sound Length (total): 24 minutes in mono, 12 minutes in stereo
File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)

-Song Player (SD Card)
Audio File: WAV (44.1 kHz, 16/24 bits), MP3

-Recorder
Recording Method: Realtime
Maximum Note Storage: approx. 40,000 notes
Export File Format: WAV (44.1 kHz, 16 bits), SMF
or
Recording Method: Realtime
Maximum length: 60 min (temporary recording: 1 min) (*1)
File format: WAV (44.1 kHz, 16 bits)

-Display
Graphic color LCD 4.3 inch
TRIGGER ACTIVITY Indicator (LED)

-Faders
8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)

-External Memory
SD Card (SDHC supported)

-Connectors
TRIGGER IN jack x 14: 1/4-inch TRS phone type (Exclusion use with digital pad)
DIGITAL TRIGGER IN port x 3: USB A type
MASTER OUT (BALANCED) jacks (L/MONO, R): 1/4-inch phone type, balanced
MASTER OUT (BALANCED) jacks (L, R): XLR type, balanced
DIRECT OUT (BALANCED) jack x 8: 1/4-inch TRS phone type, balanced
PHONES jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type
MIX IN (STEREO) jack x 1: Stereo 1/4-inch phone type
MIDI (IN, OUT/THRU) connectors
USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)
FOOT SW jack: 1/4-inch TRS phone type
DC IN jack

-Number of USB Audio Record/Playback Channels
Vendeor Mode
Sampling Rate (Original): 44.1 kHz
Sampling Rate (with Sampling rate converter): 96 kHz, 48 kHz
Record: 32 channels
Playback: 32 channels

Generic Mode
Sampling Rate (Original): 44.1 kHz
Record: 2 channels
Playback: 2 channels

-Power Supply
DC 12V (AC Adaptor)

-Current Draw
2,400 mA

-Power consumption when in off mode (when the power automatically turns off)
0.2 W

-Dimensions
330 (W) x 308 (D) x 110 (H) mm
13 (W) x 12-1/8 (D) x 4-3/8 (H) inches

-Weight
4.2 kg
9 lbs 5 oz

-Accessories
Quick Start
Roland Cloud Connect Setup Guide
Roland Cloud Activation Card
AC Adaptor

-Options (sold separately)
Pad: PD series, PDX series, BT-1
Cymbal: CY series
Kick: KD series, KT series
Hi-Hat: VH series
Hi-Hat Control Pedal: FD series
Acoustic Drum Trigger: RT series
Footswitch: BOSS FS-5U, FS-6
Personal Drum Monitor: PM series

(*1) Song recording is required SD card. The case of no inserted is capable to record the temporary recording approximately 1 minutes.
